H&R 300 AAC Blackout Handi-Rifle Review
Part 5 - Internal Features
May 4, 2013

H&R 300 AAC Blackout Handi-Rifle Review

So far I have covered in detail the external and operational features along with disassembly of the H&R 300 AAC Blackout Handi-Rifle.  In this part of the review, I show many photos allowing you to get a good look at the internal features of this rifle.  As always, you can click on a photo to bring up a higher resolution image allowing you to see the finer details in the photos.




Barrel Assembly

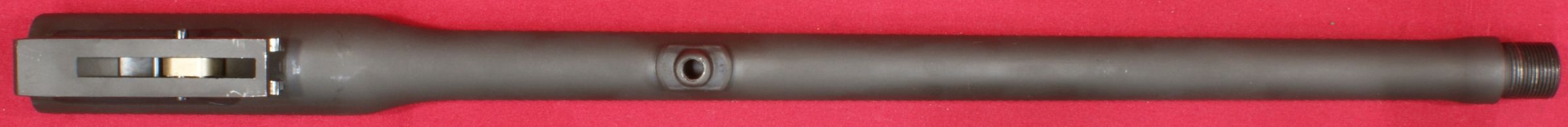

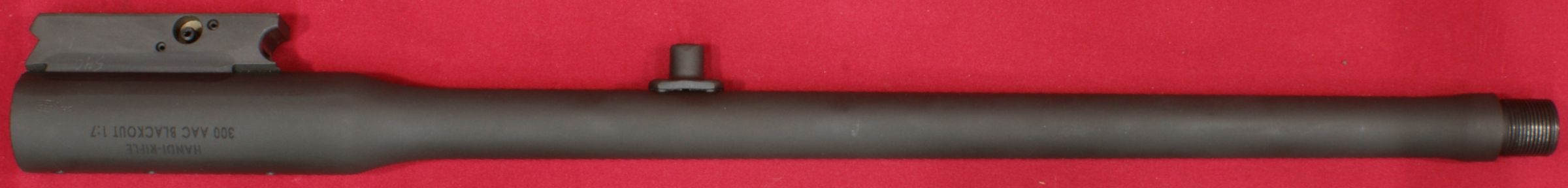

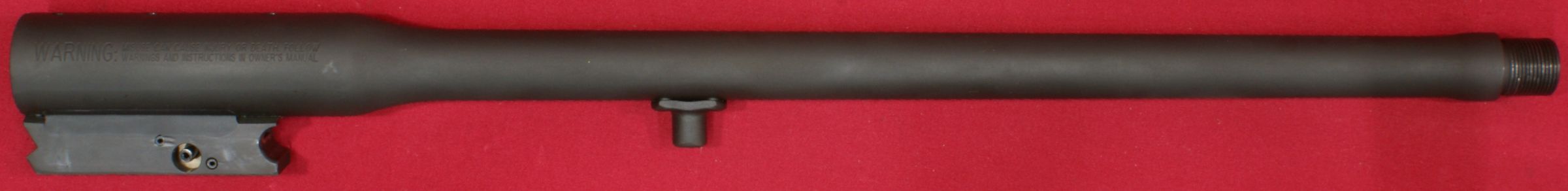

The phosphate finished barrel measured 16.31" and has a light weight profile that measures about 0.71" at the middle of the necked down portion of the barrel.

Figure 1
H&R 300 AAC Blackout Handi-Rifle Review

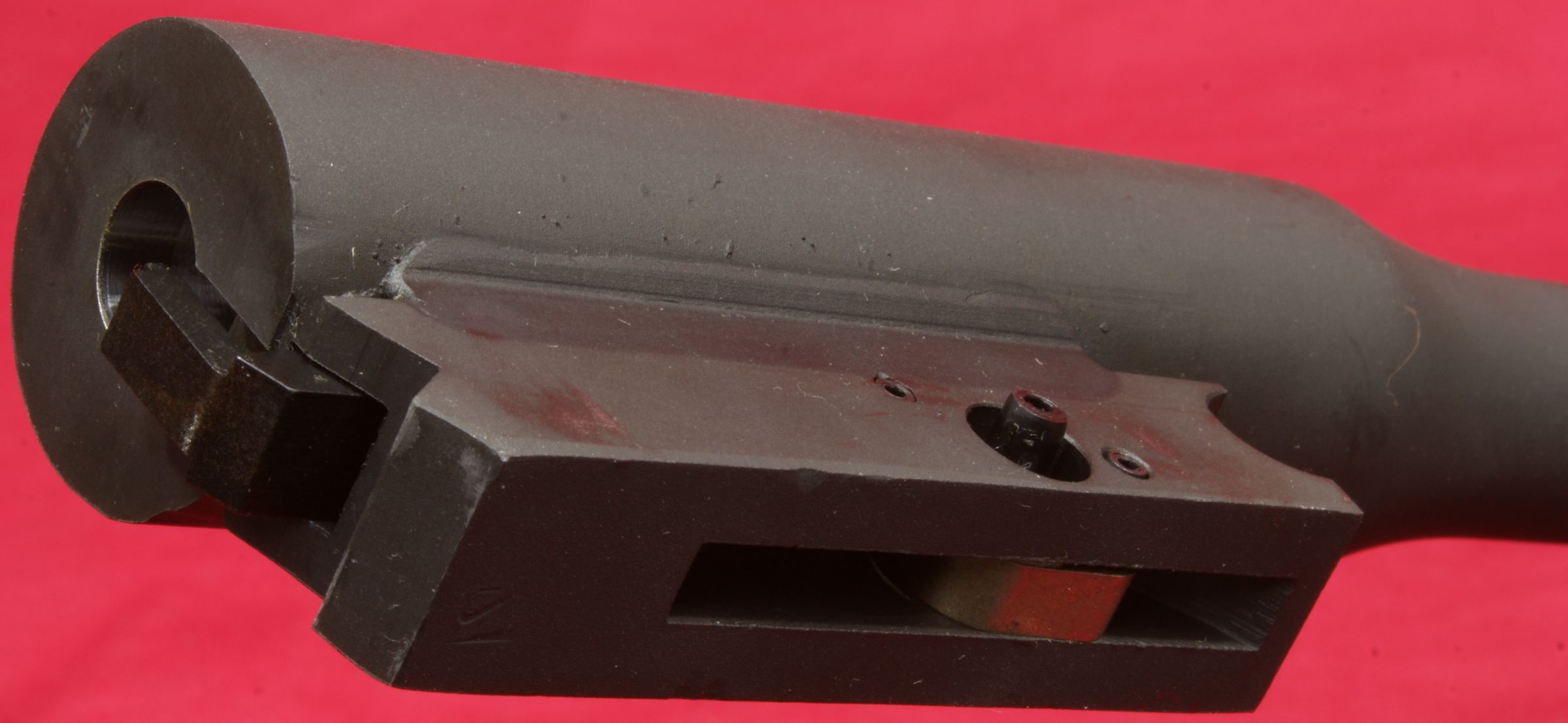

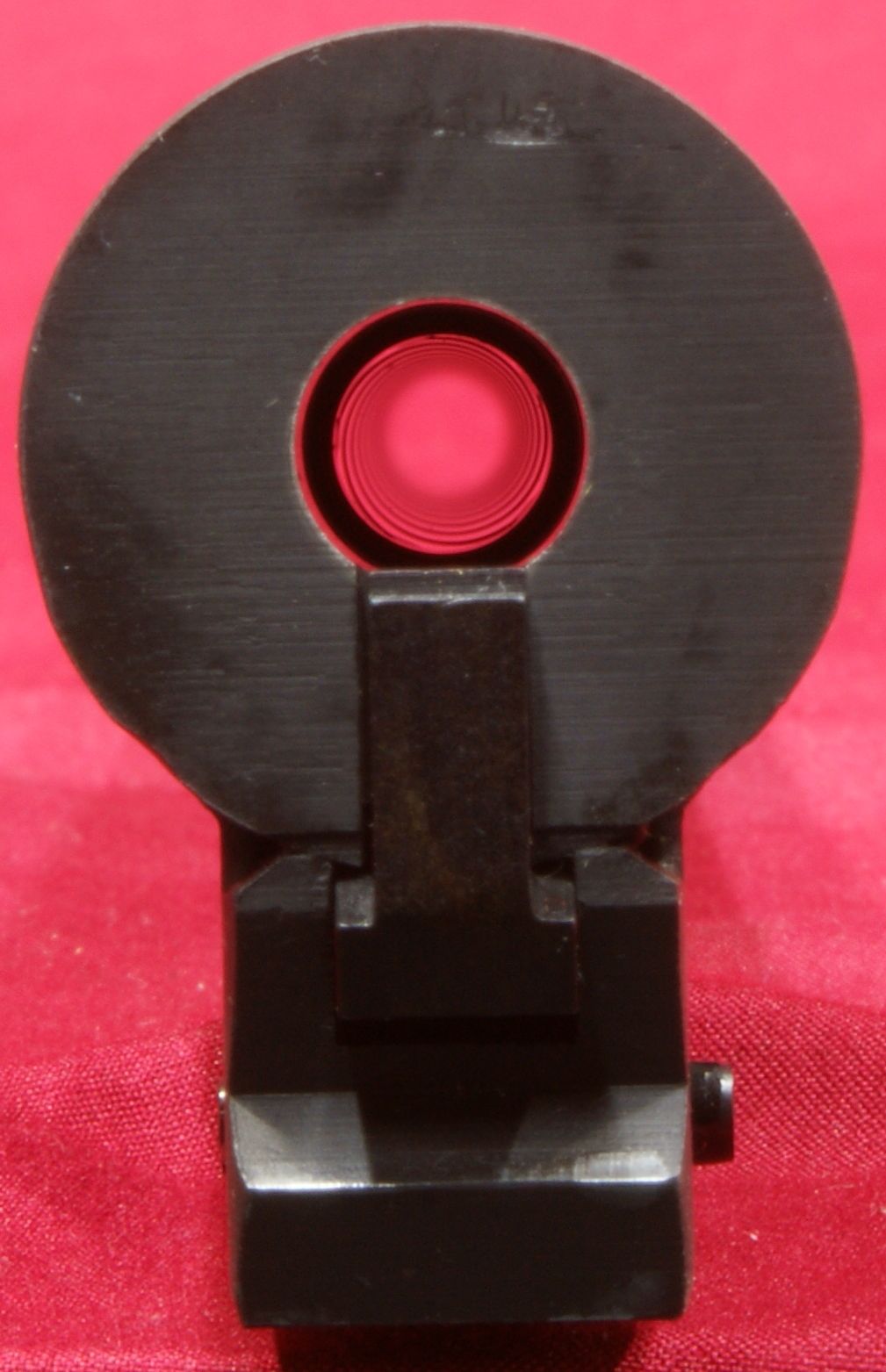

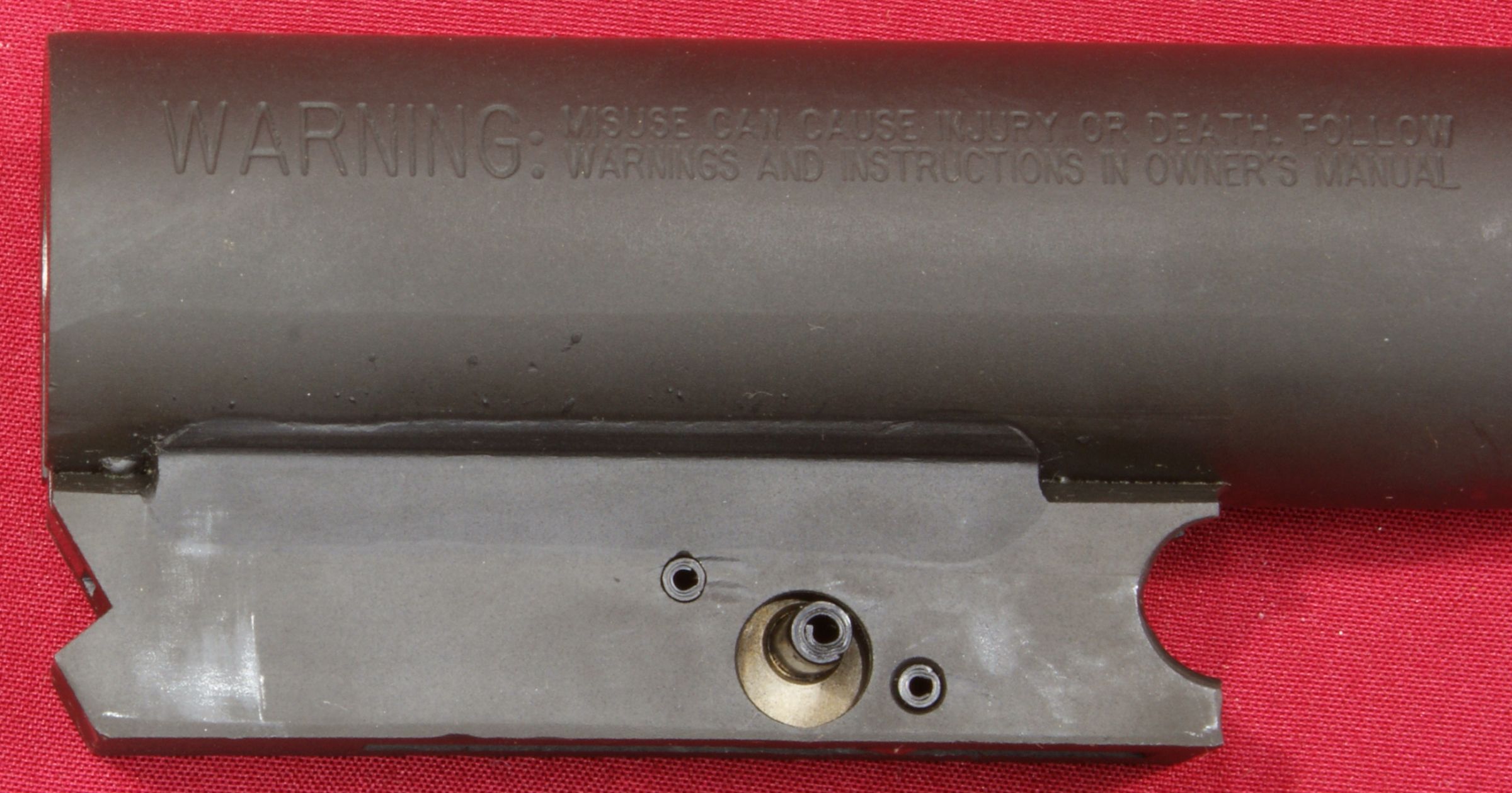

Attached to the barrel is the barrel lug and the forend threaded interface.

Figure 2
H&R 300 AAC Blackout Handi-Rifle Review

Figure 3
H&R 300 AAC Blackout Handi-Rifle Review

Figure 4
H&R 300 AAC Blackout Handi-Rifle Review

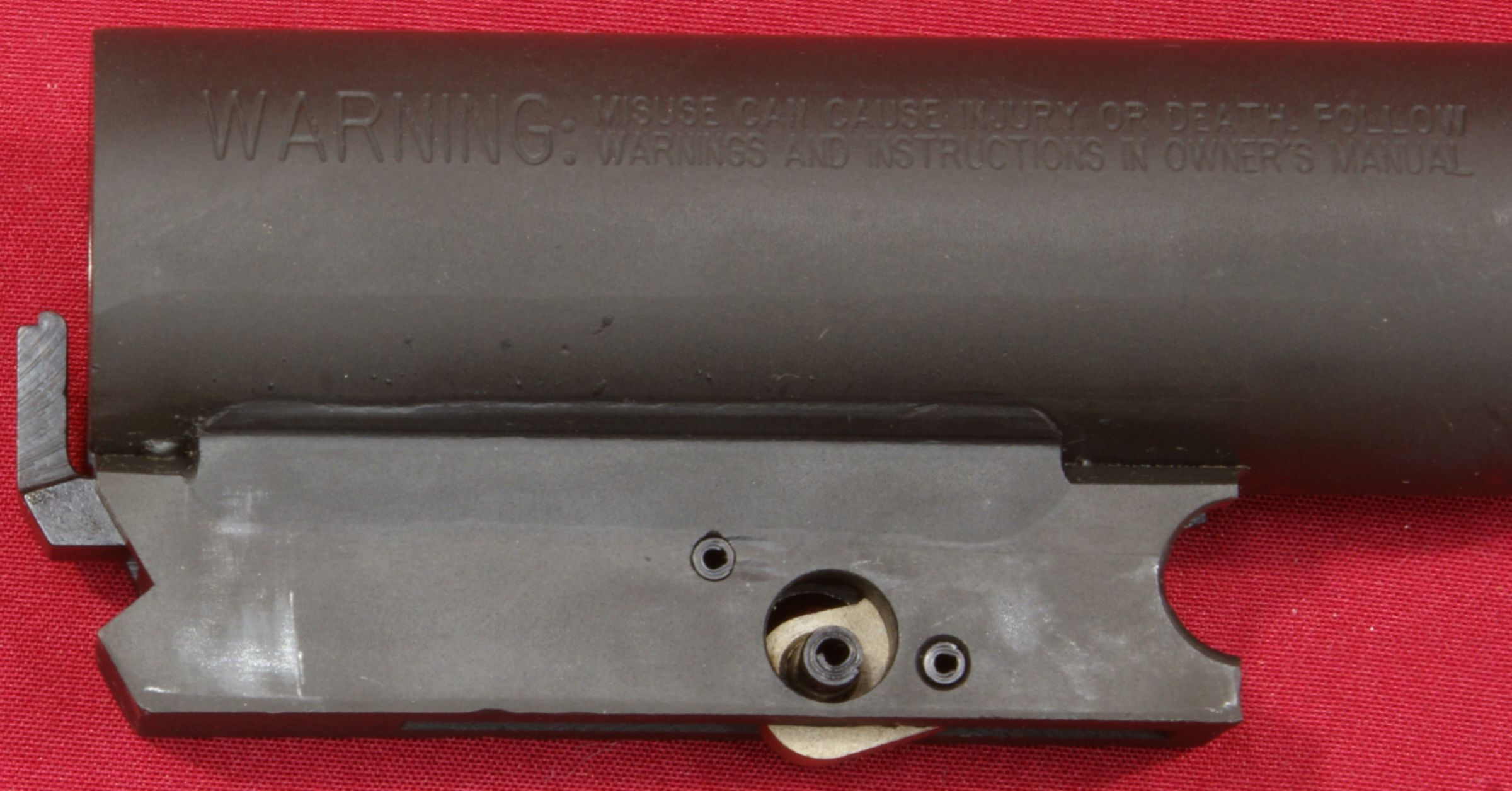

The barrel lug houses the extractor components; extractor, extractor spring and cam.

Figure 5
H&R 300 AAC Blackout Handi-Rifle Review

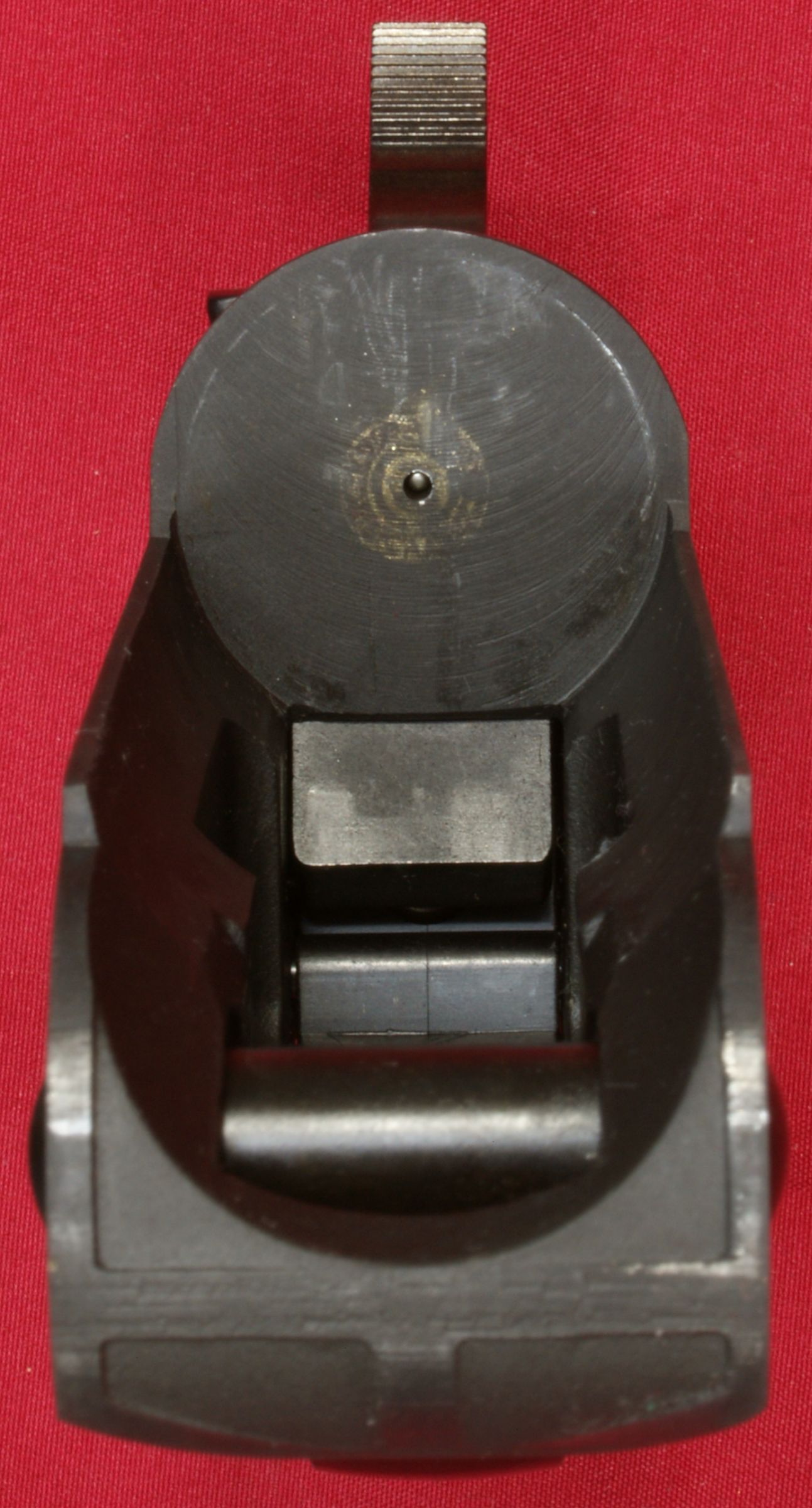

When the action is closed, the breech face pushes the extractor forward and rotates the cam and cam pin to the positions shown in the photo below.  Also notice the notch at the rear of the lug that is engaged by the barrel catch when the action is closed.

Figure 6
H&R 300 AAC Blackout Handi-Rifle Review

The photo below shows the cam rotated down which pushed the extractor rearward.  The cam is rotated down by the spring pin which goes through the cam  and makes contact with the guides on the inside of the receiver.

Figure 7
H&R 300 AAC Blackout Handi-Rifle Review

If you look closely in the photo below you can see that there are actually five grooves for the 5R rifling.  Also notice how the extractor is higher than the bottom of the chamber.  This is needed for the extractor to seat properly in the case rim.  This also puts a little up pressure on the case as you insert or remove the cases.

Figure 8
H&R 300 AAC Blackout Handi-Rifle Review

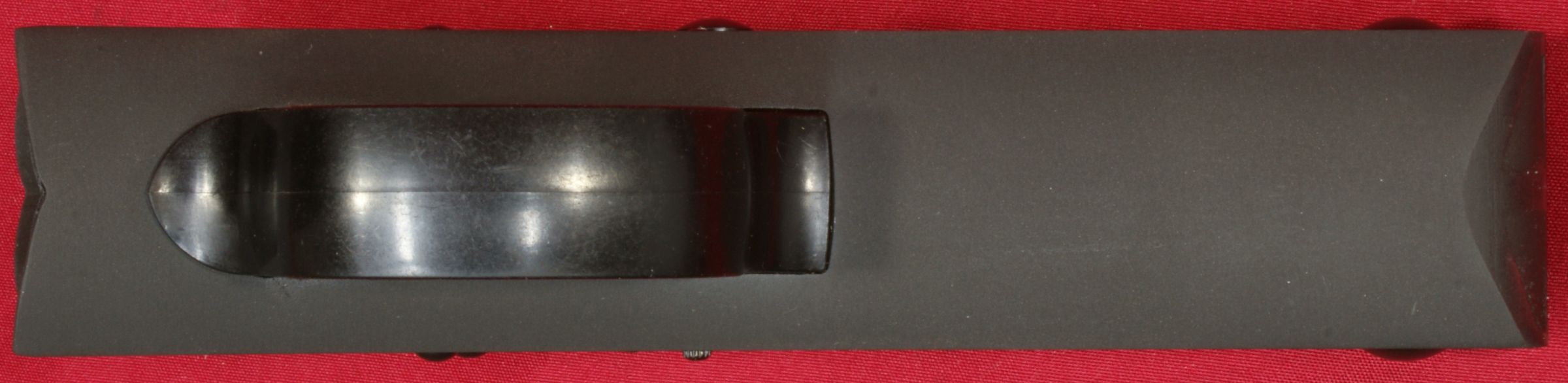

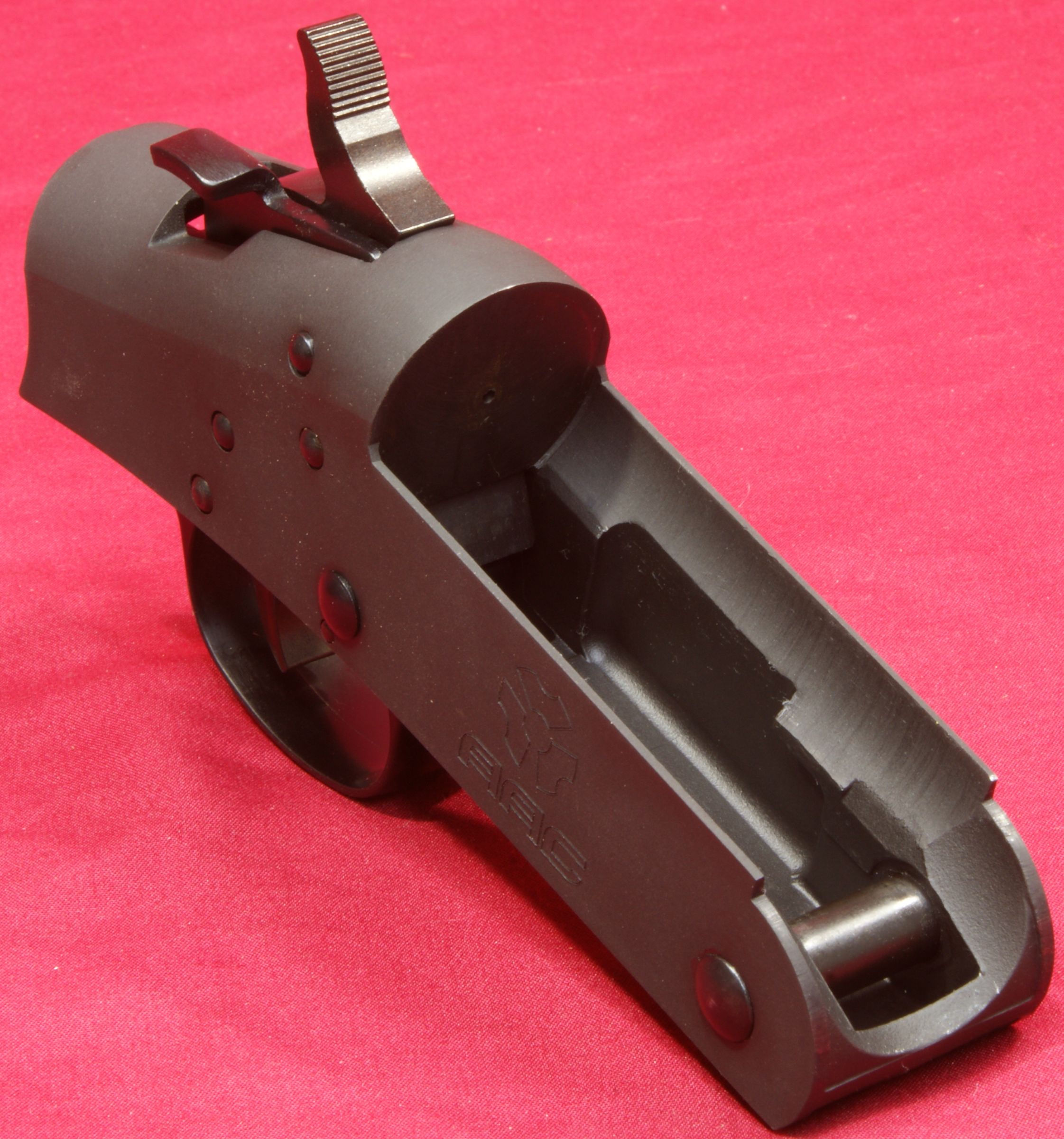

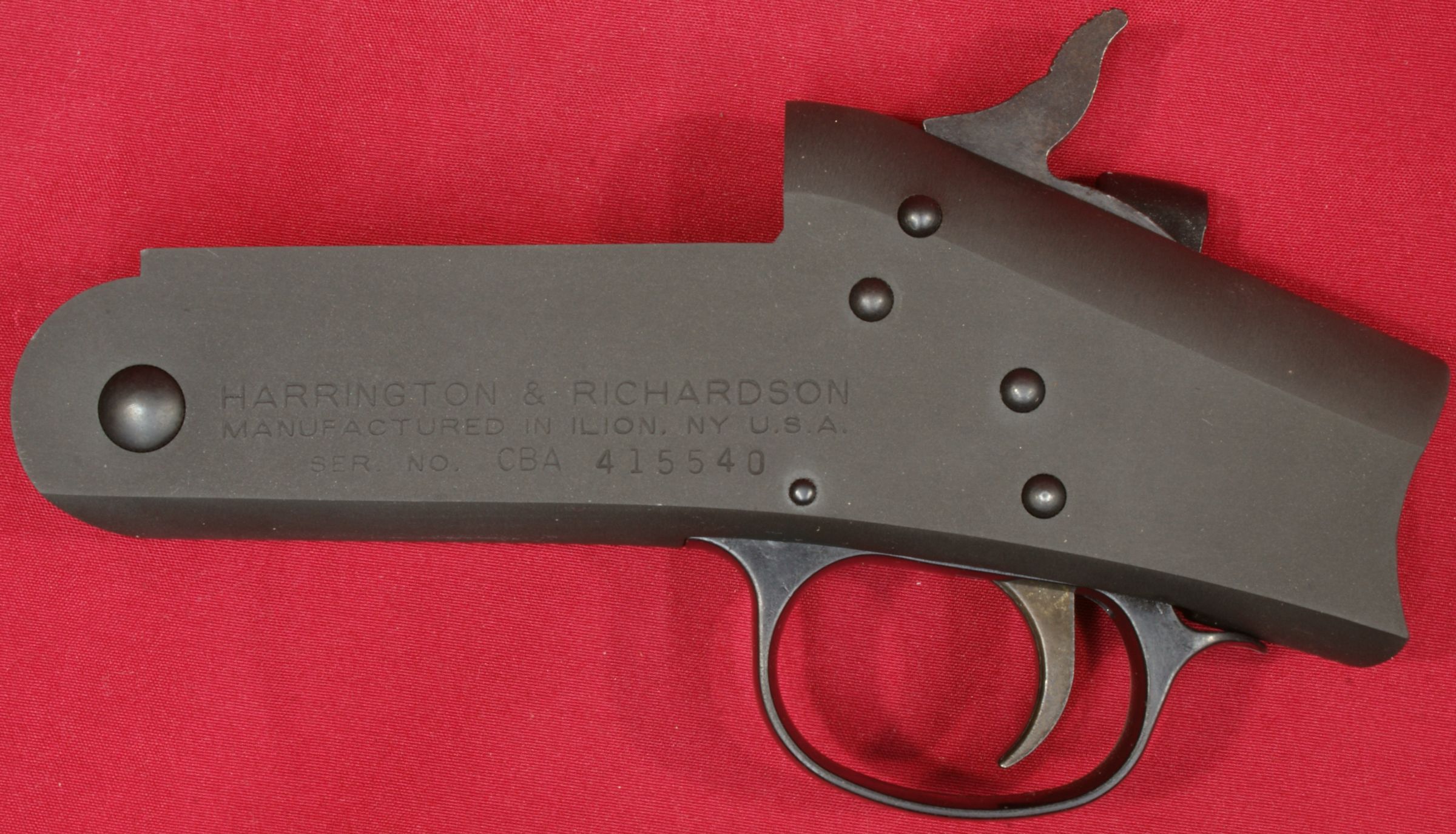

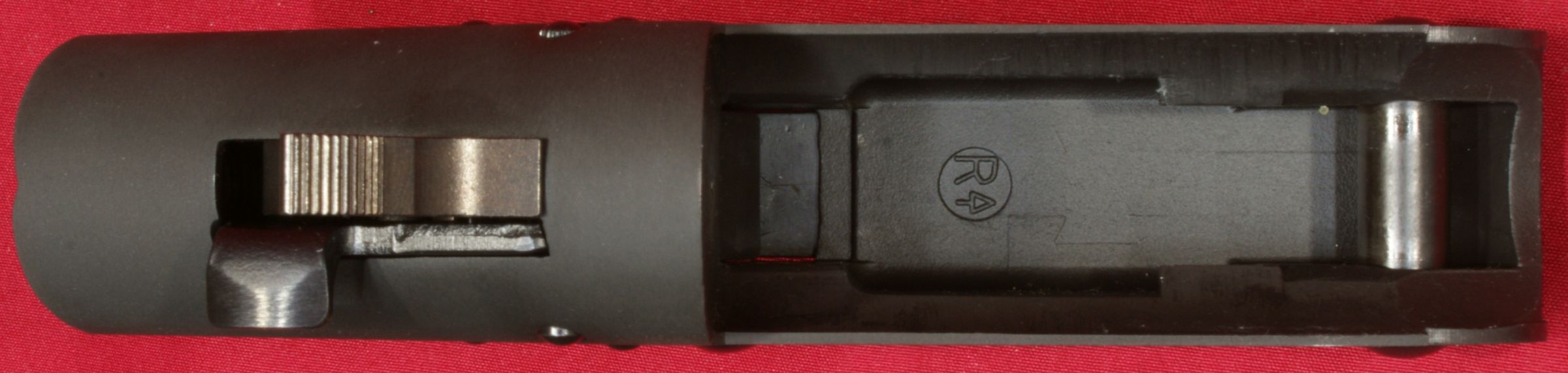

Frame Assembly

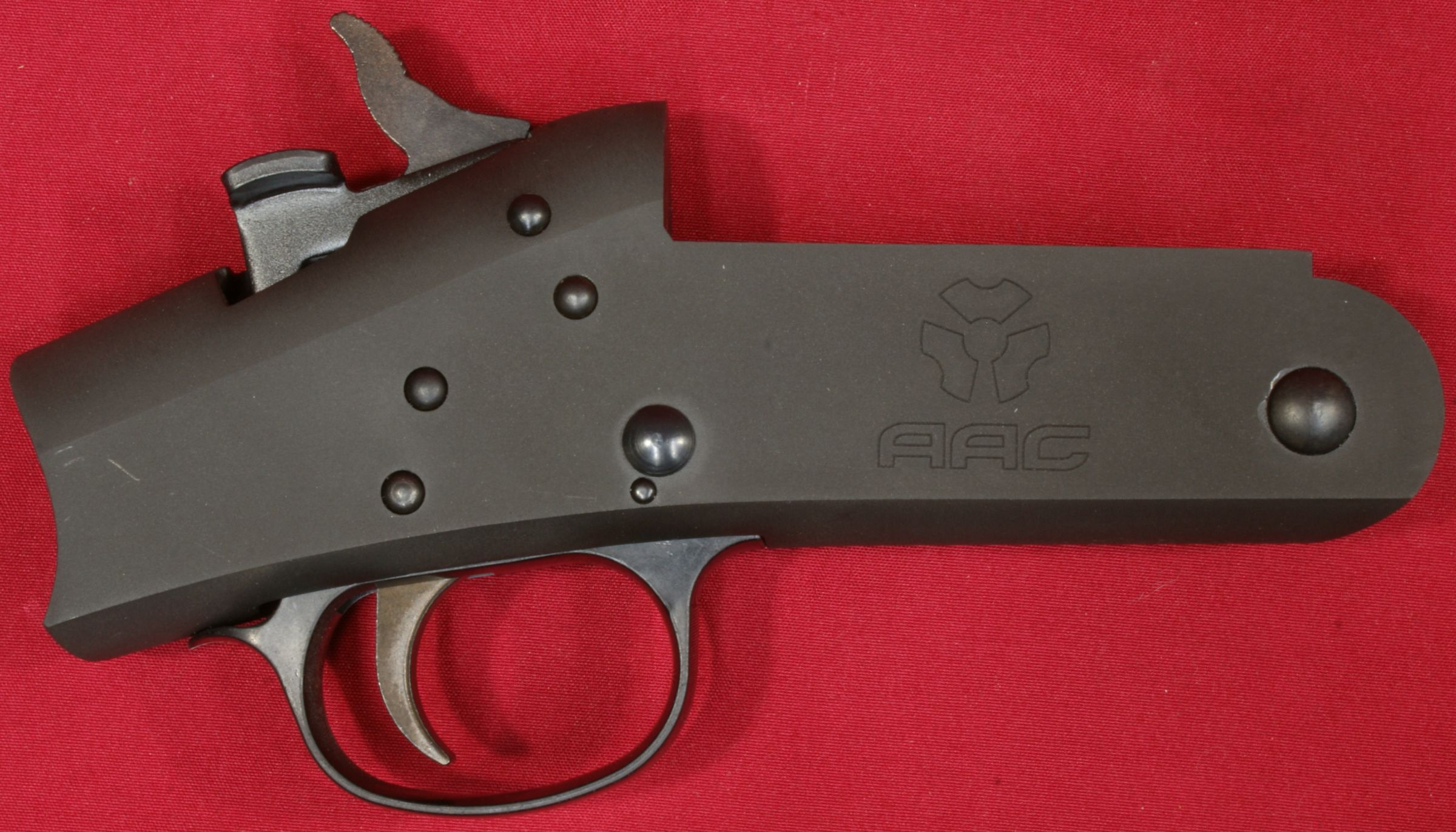

The frame is a steel investment casting with a phosphate finish.

Figure 9
H&R 300 AAC Blackout Handi-Rifle Review

Figure 10
H&R 300 AAC Blackout Handi-Rifle Review

Figure 11
H&R 300 AAC Blackout Handi-Rifle Review

Figure 12
H&R 300 AAC Blackout Handi-Rifle Review

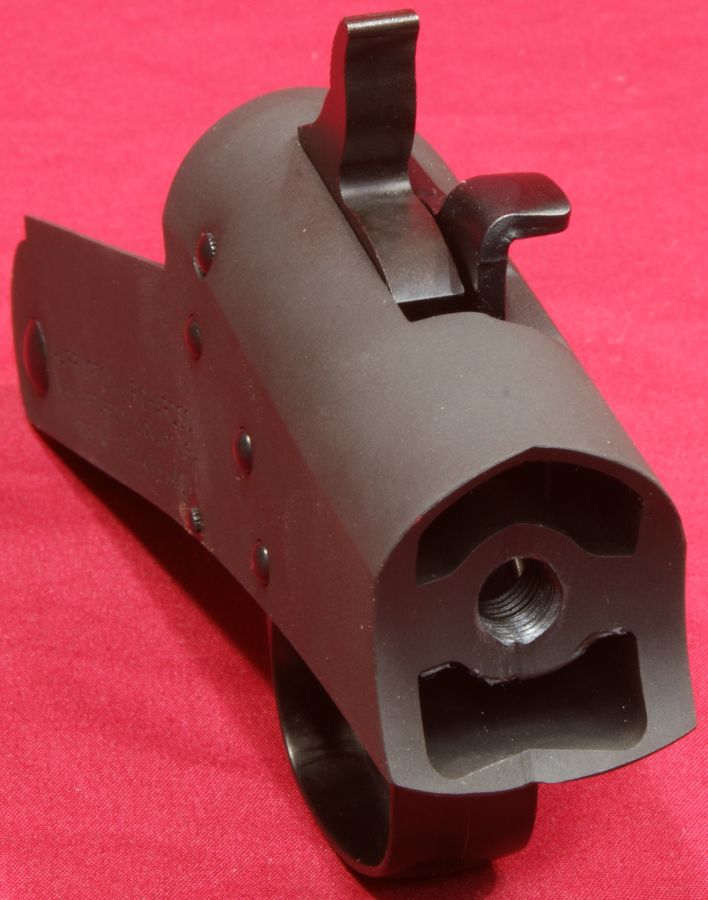

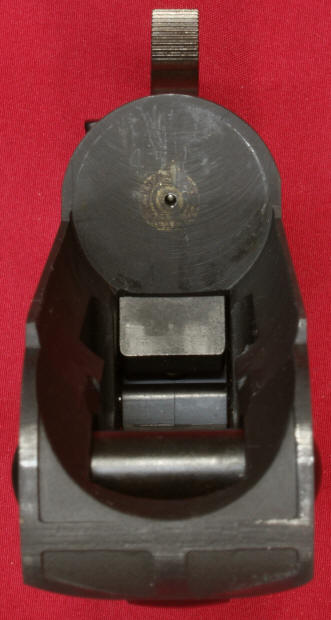

I'm no H&R aficionado, but I believe this is a SB2 frame which can be identified by the skeletonized area on the stock mating surface around the stock bolt hole.

           Figure 13                                                          Figure 14
H&R 300 AAC Blackout Handi-Rifle Review   H&R 300 AAC Blackout Handi-Rifle Review

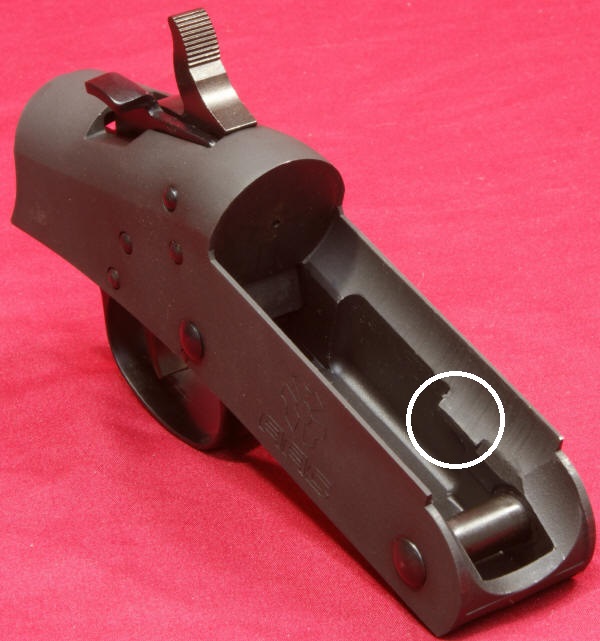

The white circle below identifies the guide in the side of the frame which guides the pin in the cam to push the extractor rearward.

Figure 15
H&R 300 AAC Blackout Handi-Rifle Review

Figure 16
H&R 300 AAC Blackout Handi-Rifle Review


Stock

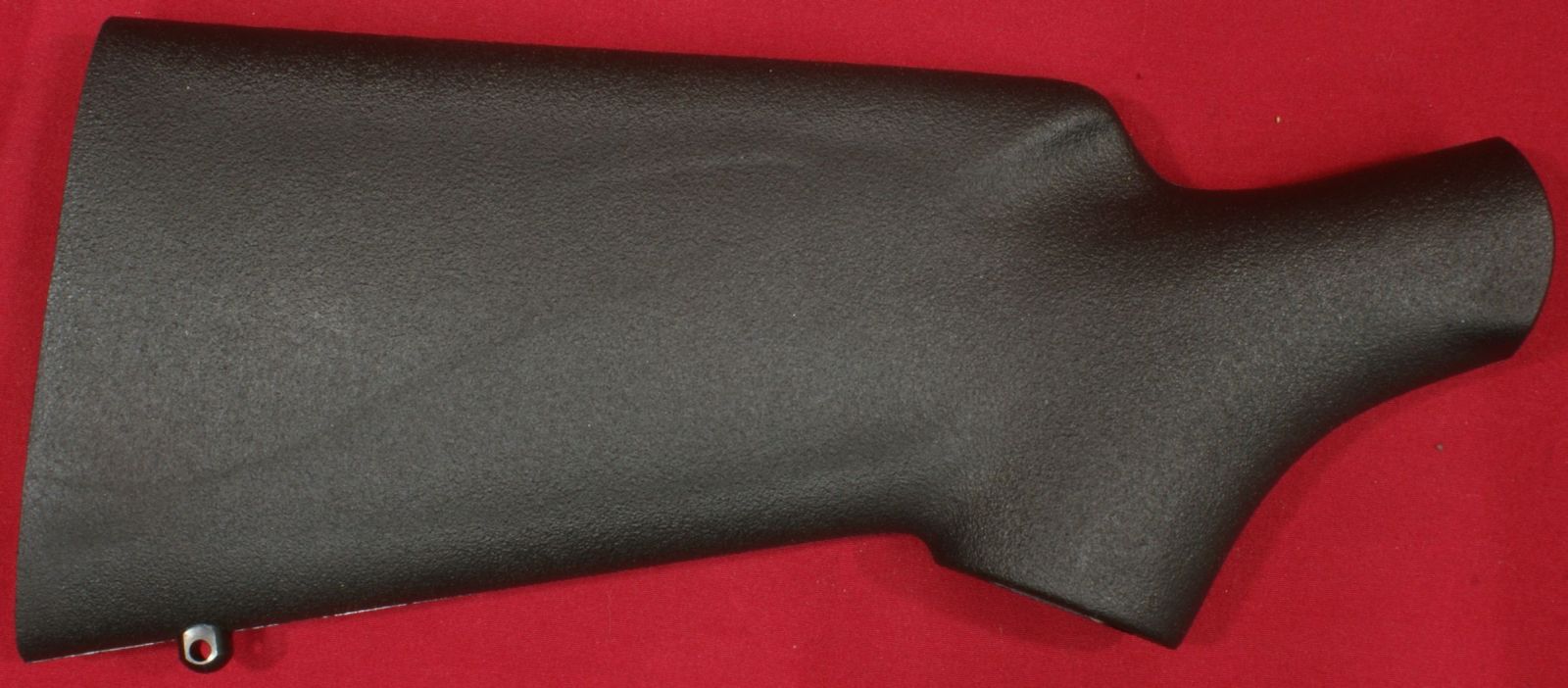

The stock is a polymer material that is most likely glass filled nylon.

Figure 17
H&R 300 AAC Blackout Handi-Rifle Review

Figure 18
H&R 300 AAC Blackout Handi-Rifle Review

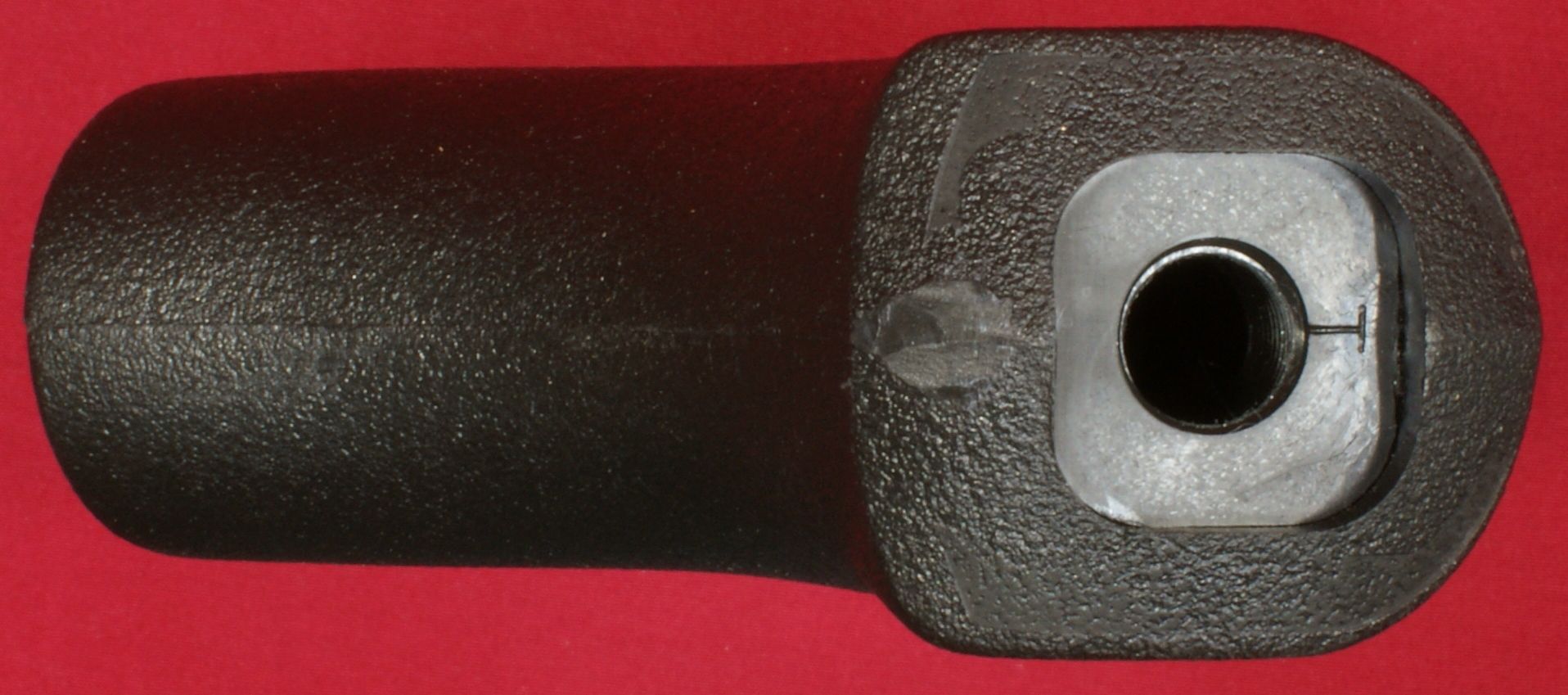

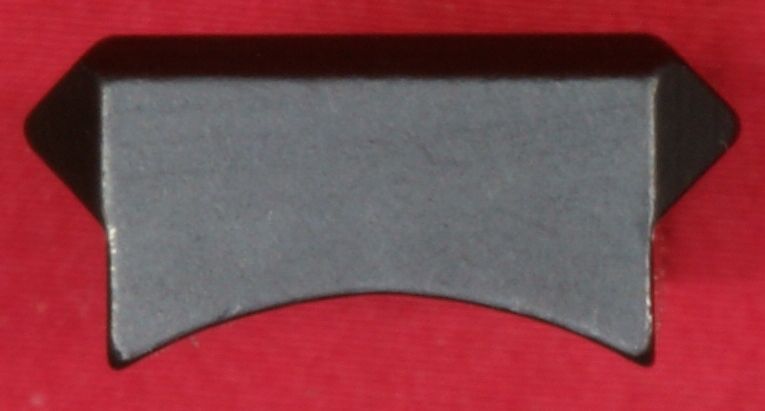

The stock includes a grip cap that serves no clear purpose other cosmetic.

Figure 19                                                             Figure 20
H&R 300 AAC Blackout Handi-Rifle Review   H&R 300 AAC Blackout Handi-Rifle Review

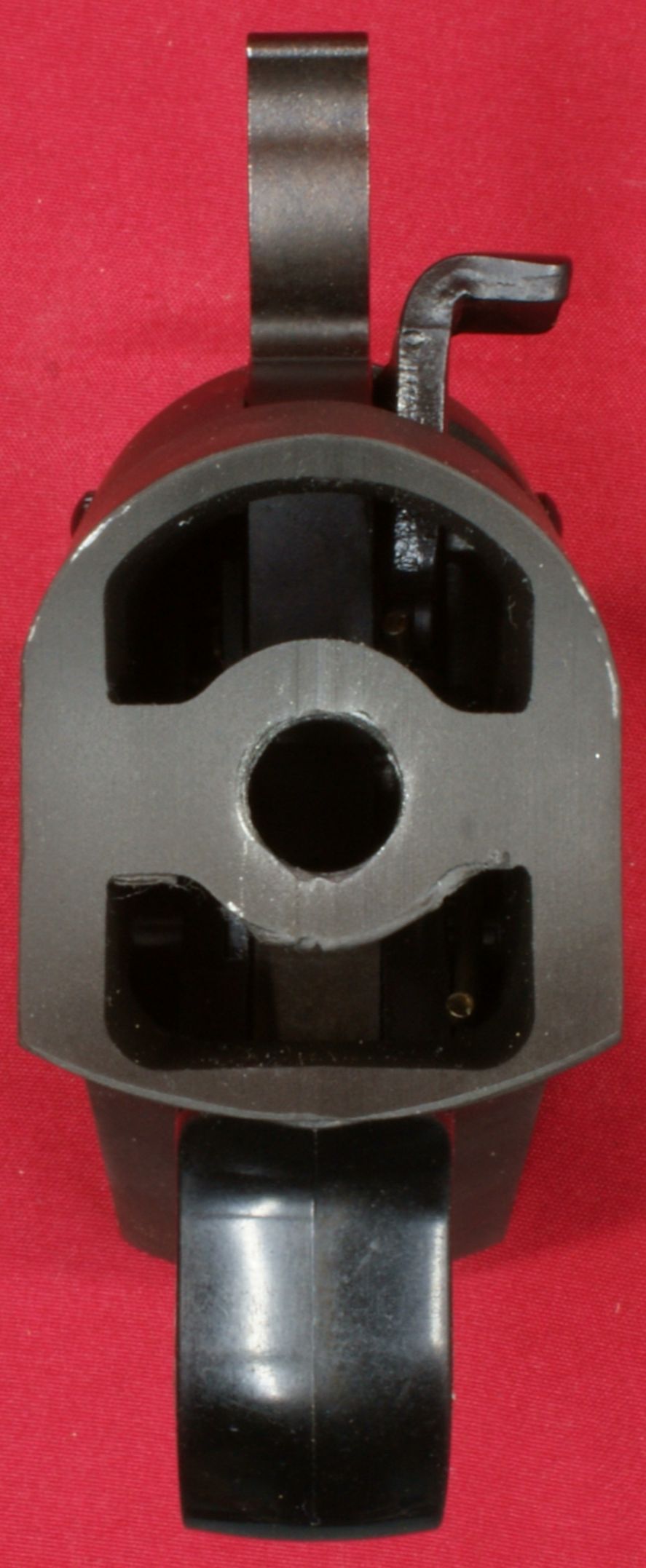

The interface of the stock to the frame is simple with no alignment system other than the way the slight "V" shape and two curved surfaces mate together.

Figure 21
H&R 300 AAC Blackout Handi-Rifle Review

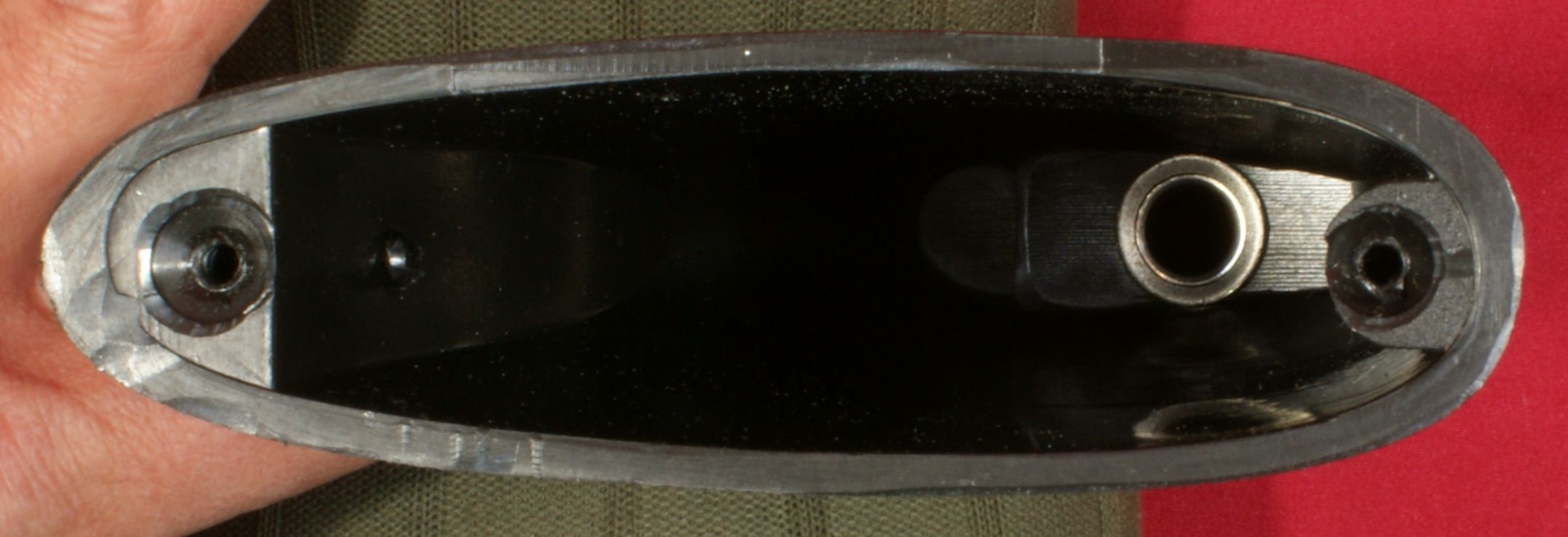

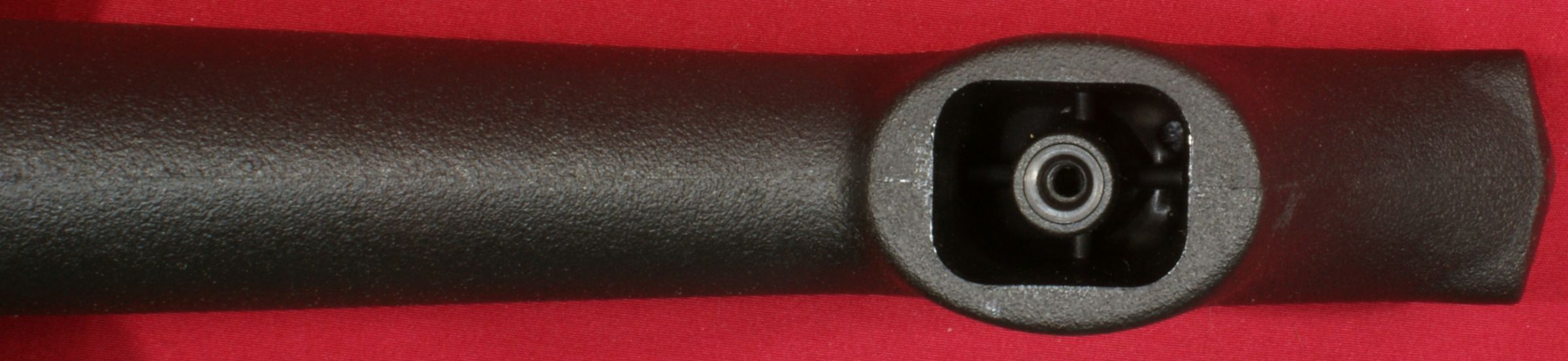

The inside of the stock has a hollow cavity which would allow you to store some basic survival gear for the unknown.

Figure 22
H&R 300 AAC Blackout Handi-Rifle Review

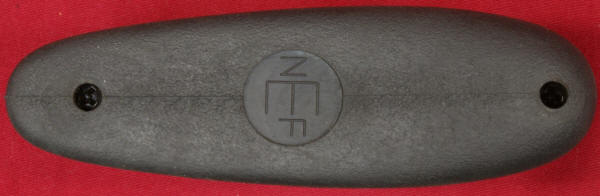

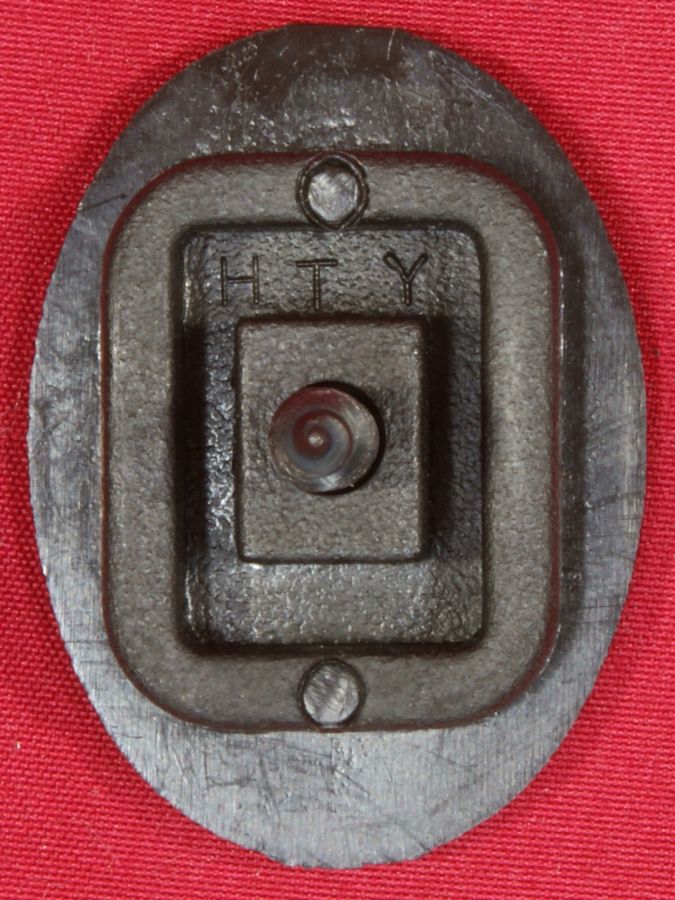

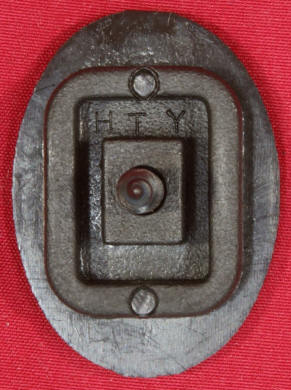

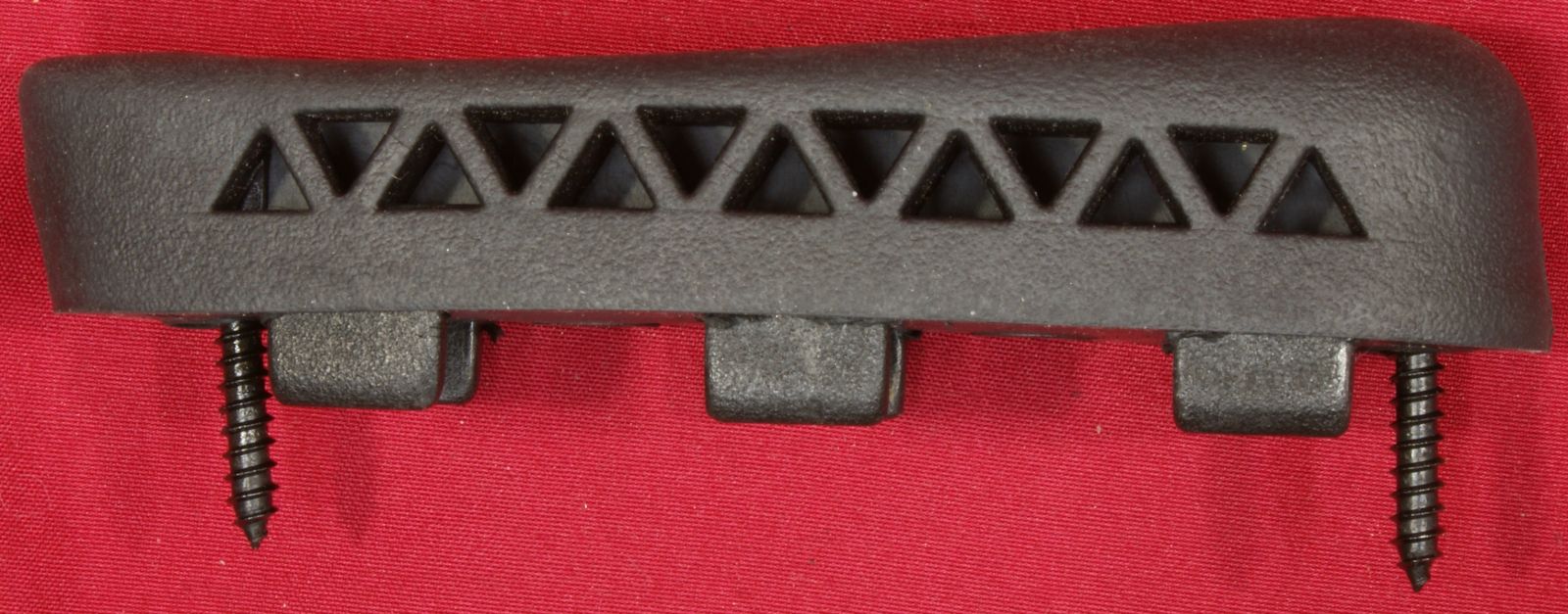

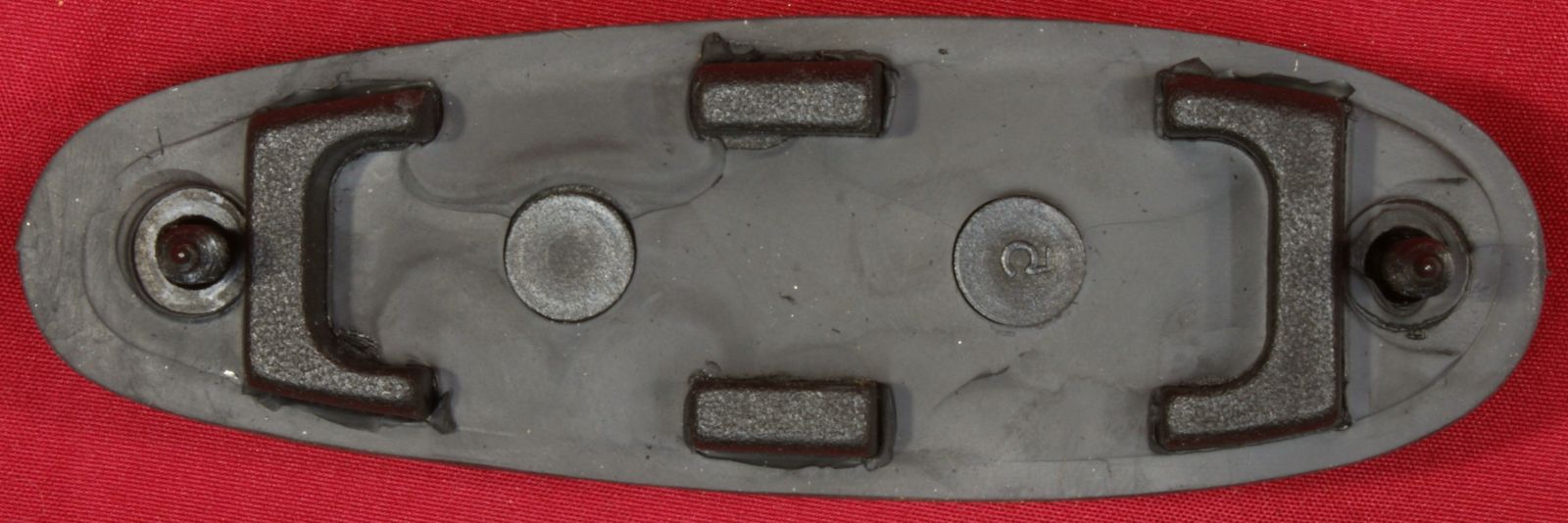

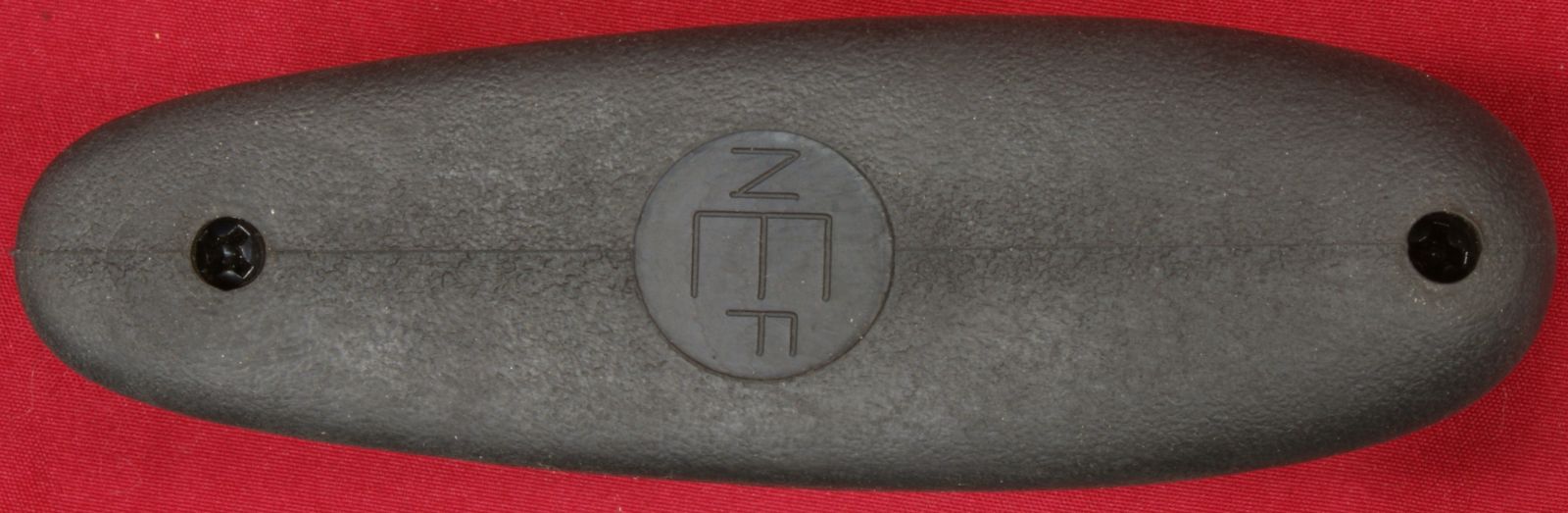

Recoil Pad

Figure 23
H&R 300 AAC Blackout Handi-Rifle Review

Figure 24
H&R 300 AAC Blackout Handi-Rifle Review

Figure 25
H&R 300 AAC Blackout Handi-Rifle Review

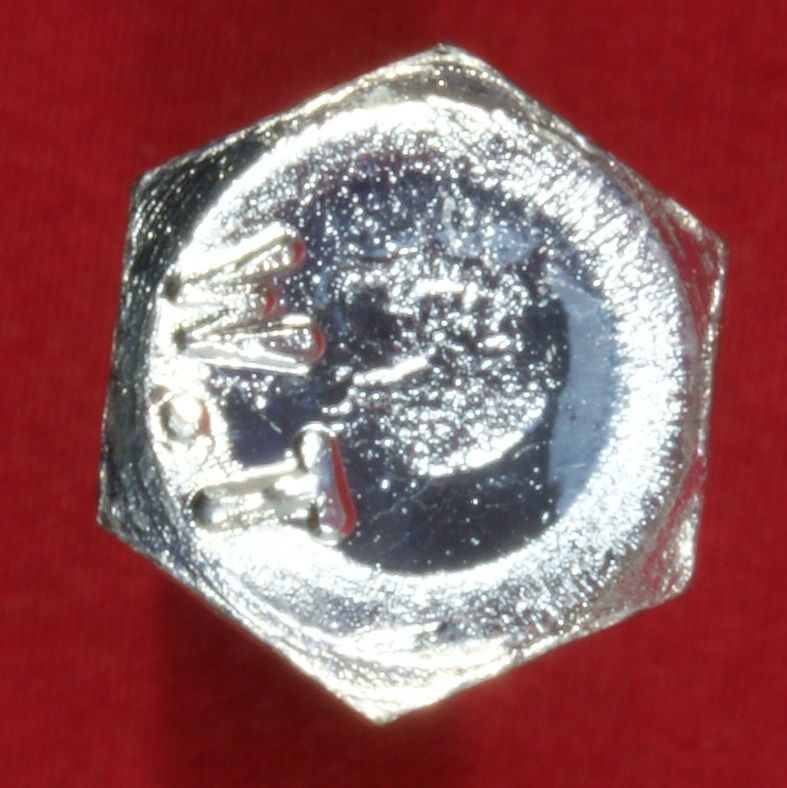

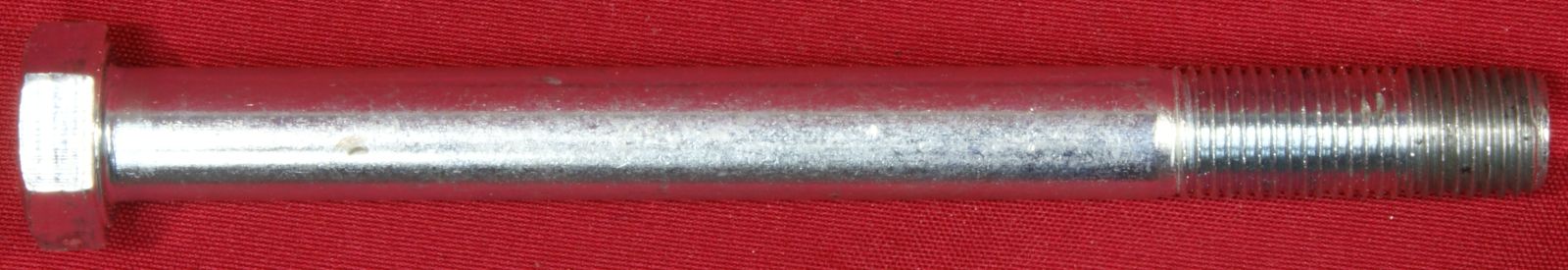

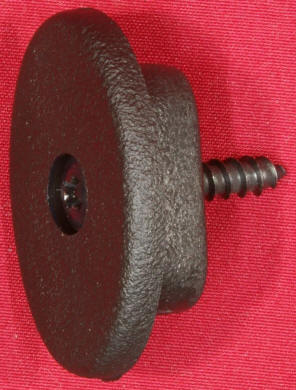

Stock Bolt

Figure 26                                                           Figure 27
H&R 300 AAC Blackout Handi-Rifle Review   H&R 300 AAC Blackout Handi-Rifle Review

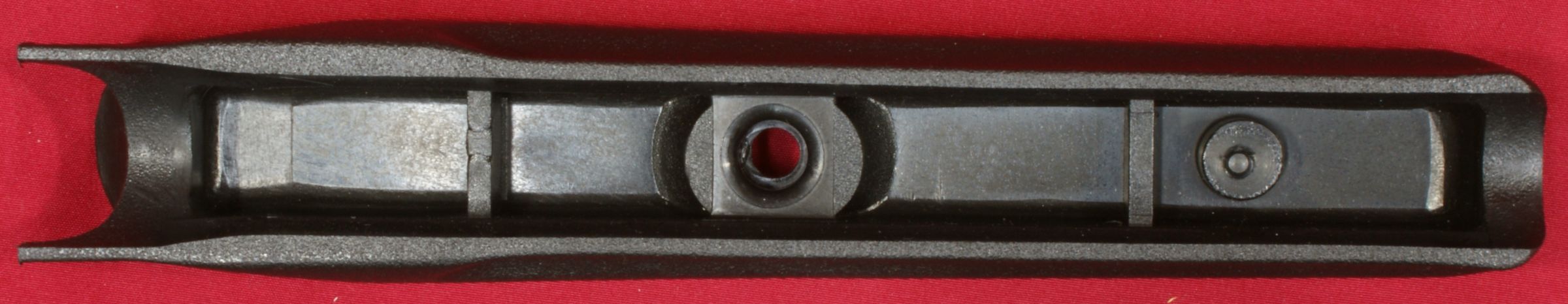

Forend

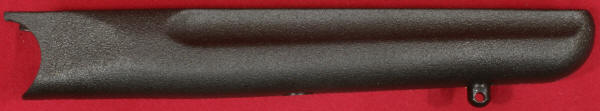

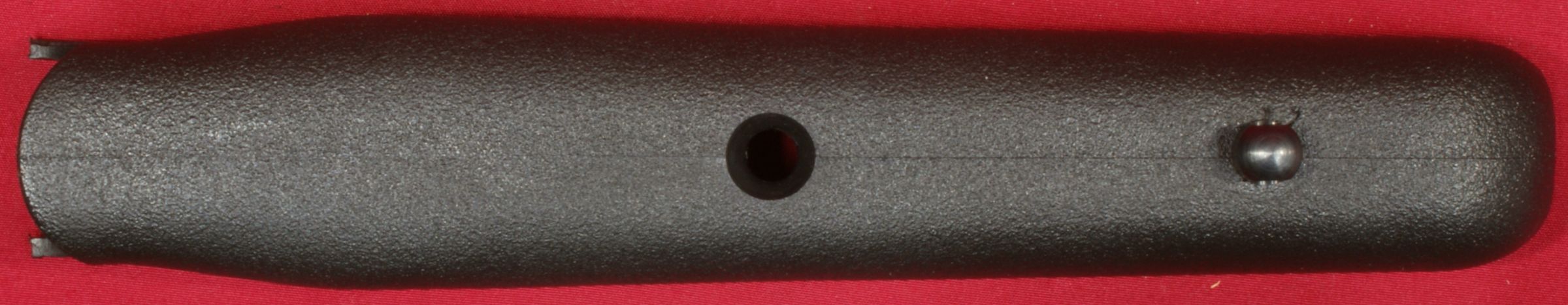

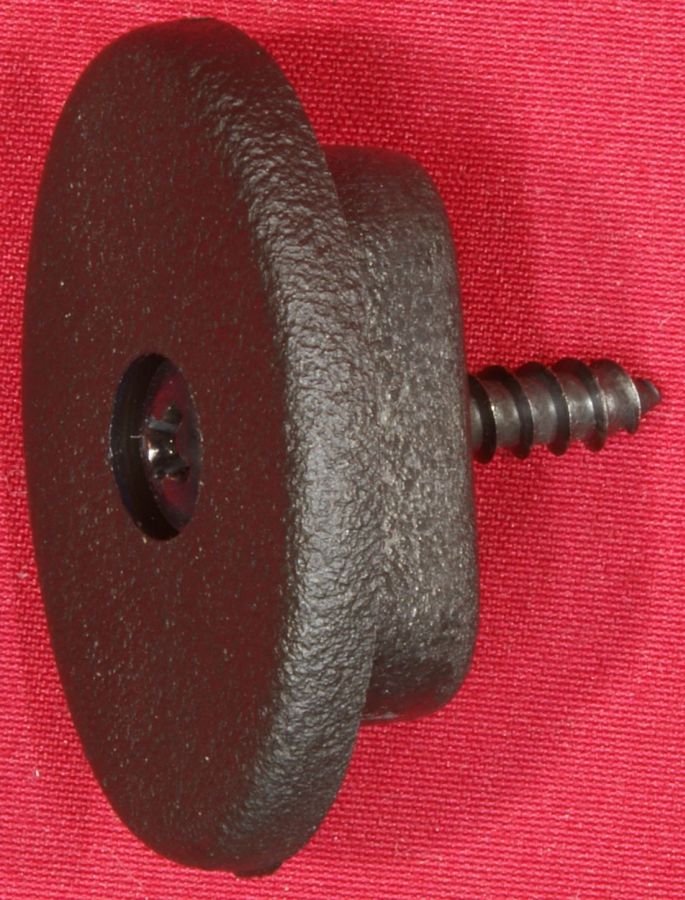

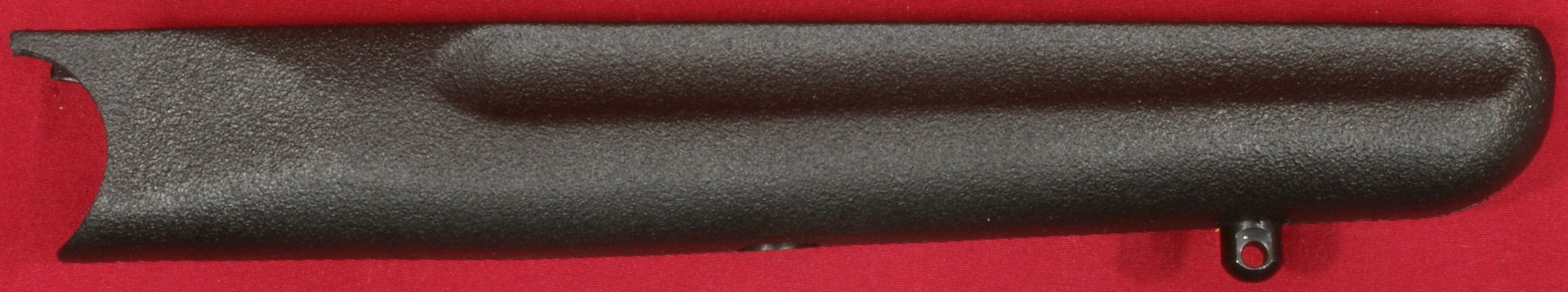

The forend is made from a polymer material which is most likely glass filled nylon.  The sling swivel stud is screwed directly into the polymer material.

Figure 28
H&R 300 AAC Blackout Handi-Rifle Review

Figure 29
H&R 300 AAC Blackout Handi-Rifle Review

Figure 30
H&R 300 AAC Blackout Handi-Rifle Review

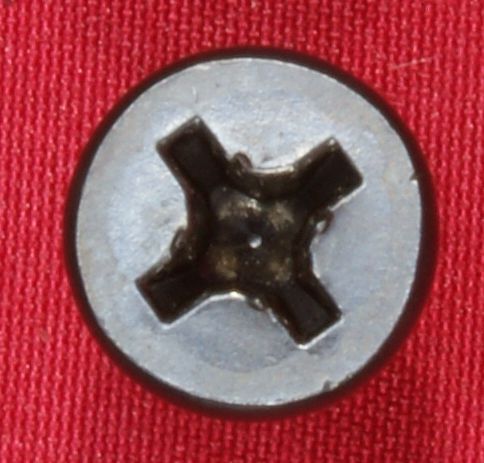

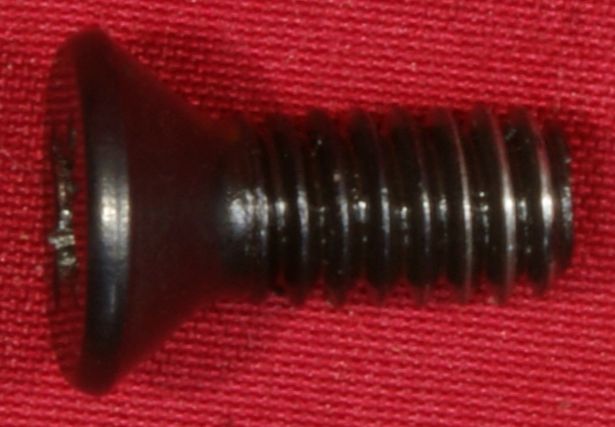

Forend Mount Screw

Figure 31                                                  Figure 32
H&R 300 AAC Blackout Handi-Rifle Review   H&R 300 AAC Blackout Handi-Rifle Review


Optics Mount Rail

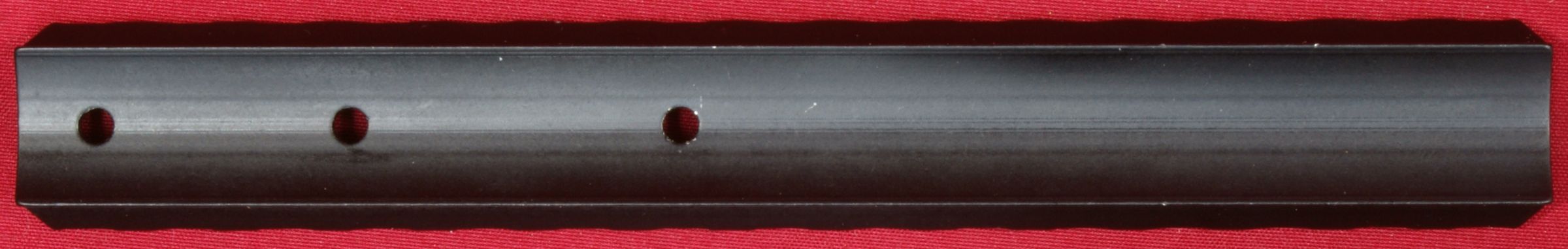

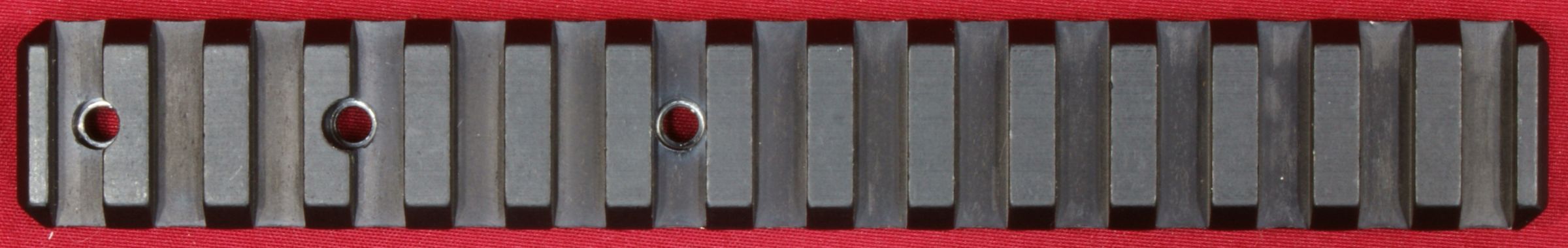

The optics mount rail is made from aluminum and has a standard Picatinny rail profile.  The rail measures 6.0" in length and has a height of about 0.30".

Figure 33
H&R 300 AAC Blackout Handi-Rifle Review

Figure 34
H&R 300 AAC Blackout Handi-Rifle Review

Figure 35
H&R 300 AAC Blackout Handi-Rifle Review


Thread Protector

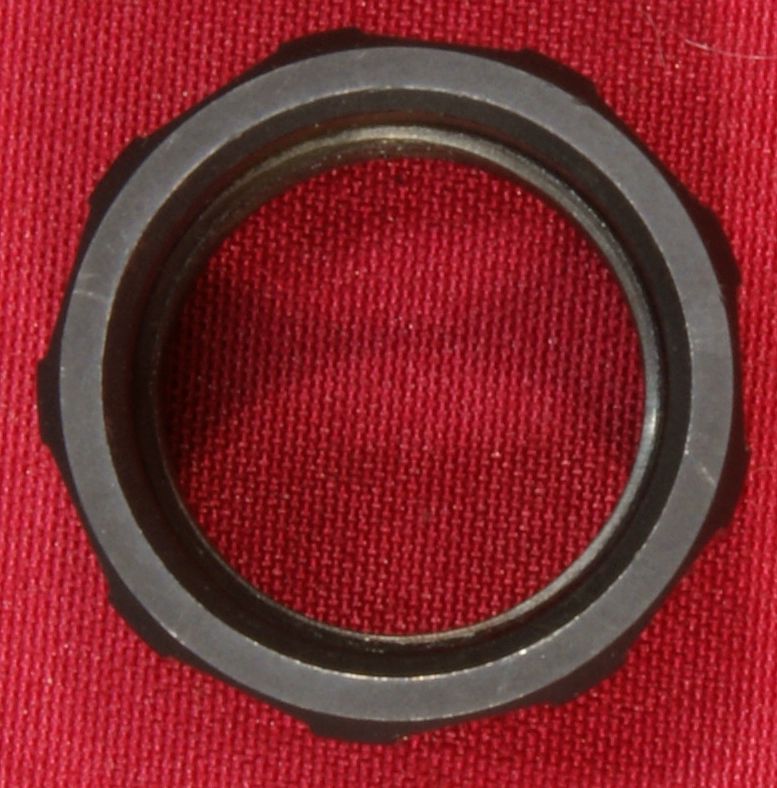

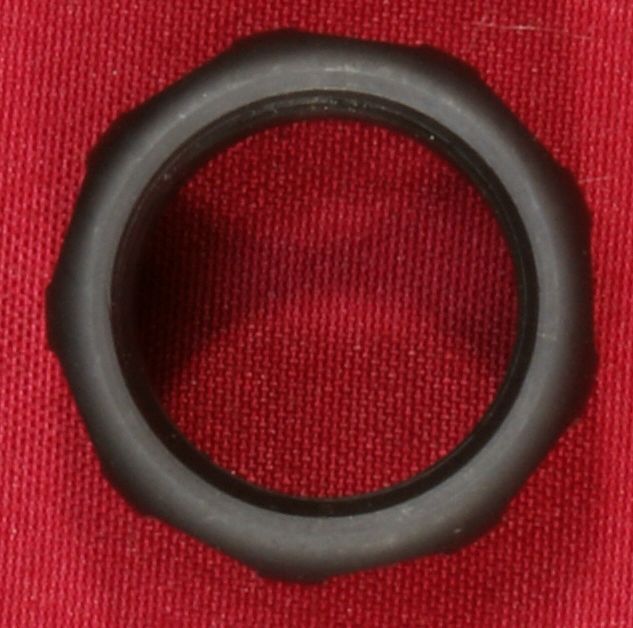

The thread protector is made from anodized aluminum with an internal 5/8-24 TPI thread.  The length measures 0.63".

Figure 36                                   Figure 37                                   Figure 38
H&R 300 AAC Blackout Handi-Rifle Review   H&R 300 AAC Blackout Handi-Rifle Review   H&R 300 AAC Blackout Handi-Rifle Review



Thoughts

Overall it looks like H&R has produced a simple, functional and value oriented firearm.
